R8 Spindle Manual Milling Machine 2.2KW Magazine Z Axis 4KJ-B

Brand Name : JOINT

Model Number : 4KJ-B

Certification : ISO 9001:2015

Place of Origin : China

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : T/T, L/C

Supply Ability : 500 SETS/YEAR

Delivery Time : Negotiation

Packaging Details : Wooden pallet/ wooden case

Model NO. : 4KJ-B

Spindle Taper : R8(NT30）

X Axis Travel : 730mm

Z Axis Travel : 115mm

OEM service : Yes, can provide

Milling Head : Step Speed CNC Milling Head

Three Axes Feed Speed : 5m/min

Dimension : 1500*1700*2150mm

Contact Now

Product Introduction:
1. Configure the split electronic handwheel for easy manual operation.

2. Based on Windows platform to develop the JOINT intelligent machine system, the application is more user-friendly.

3. The milling head is modified and driven by the servo motor to realize the Z-axis automatic control precision processing.

4. X/Y/Z axis are adopt the ball screw, which can compensate the pitch to ensure accurate positioning.

5. X/Y/Z axis are driven by servo motor to realize three-axis automatic control, which greatly improves the machine feed speed and machining accuracy.

6. NC Intelligent milling machine provide processing solutions for mild industry, electronic communications industry, metal products.


Specification:

Model4KJ-B
Table sizemm1270*254*90
T slot (W*N*D)mm16*3*65
X axis travelmm730
Y axis travelmm340
Z axis travelmm115
Knee travelmm340
Max. distance between spindle and tablemm400
Spindle rated powerHP3HP (2.2KW)
Spindle taper R8 (NT30)
Rotation speedrpm80-4530 (16 grades)
Rapid feed (X/Y/Z)m/min8/8/8
Cutting feedm/min5
Dimensionmm1500*1700*2150
Net weightkg1400



Standard accessories:
1. JYD-400A / GSK980MDI Control system with motor and driving
2. Step speed cnc milling head
3. Cover
4. Auto lubrication system
5. Workpiece coolant system
6. Three Inner encoder feedback system

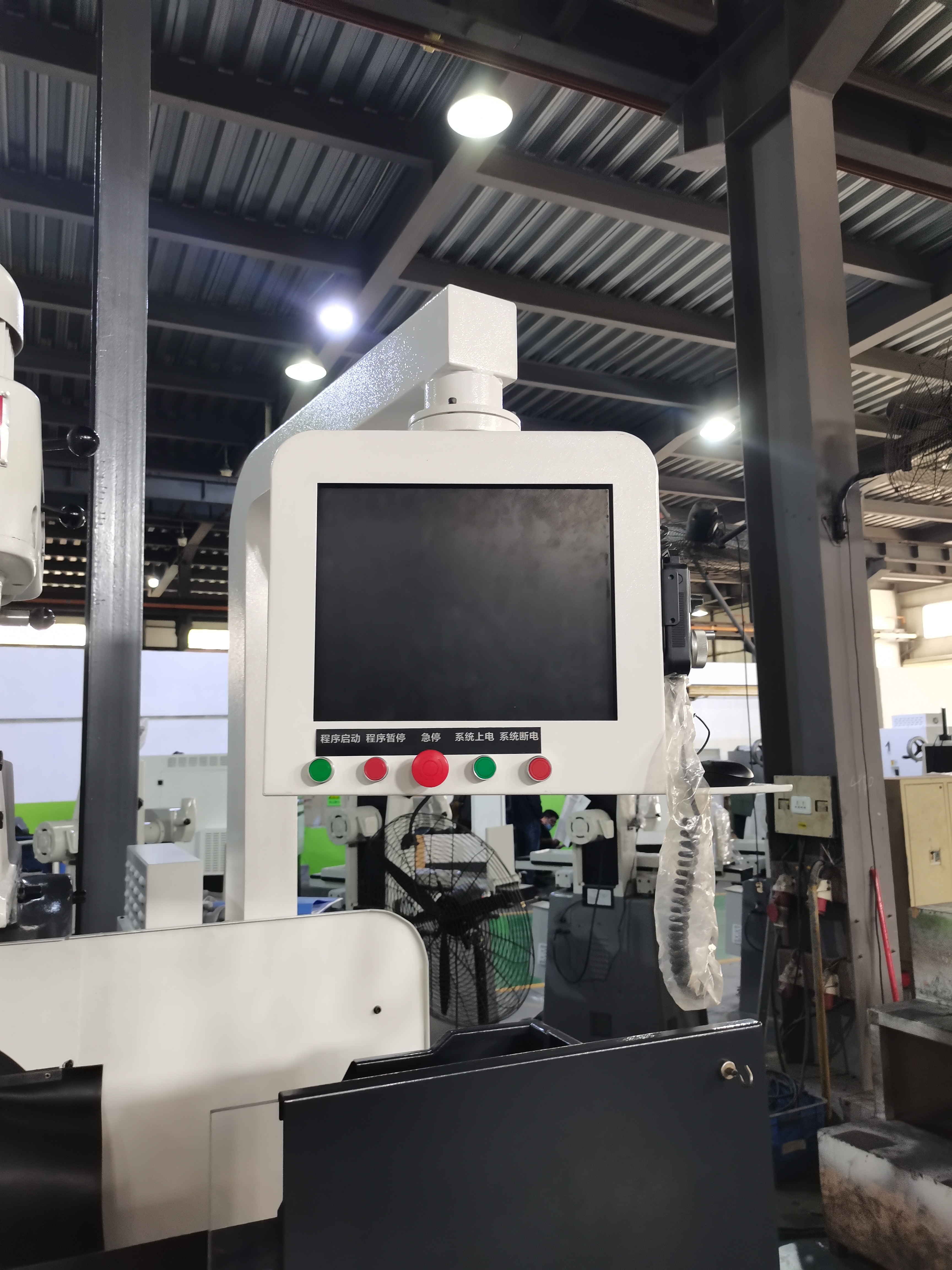

7. Operation unit
8. USB interface
9. Working light
10. Cover of guide way
11. Tool and tool box
12. Operation Manual

Overview:

R8 Spindle Manual Milling Machine 2.2KW Magazine Z Axis 4KJ-B
R8 Spindle Manual Milling Machine 2.2KW Magazine Z Axis 4KJ-B
