Name: 60 3000rpm Rotation Speed Turret Milling Machine NT40 Spindle Turret Milling
Brand: JOINT
Price: 1 USD

Brand Name : JOINT

Model Number : 5VA

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

Rotation speed : 60-3000rpm

Name : Turret milling machine

X axis travel : 680mm

Y axis travel : 415mm

Z axis travel : 420mm

Spindle taper : NT40

Spindle power : 5HP

Table size : 1270*254*90mm

Contact Now

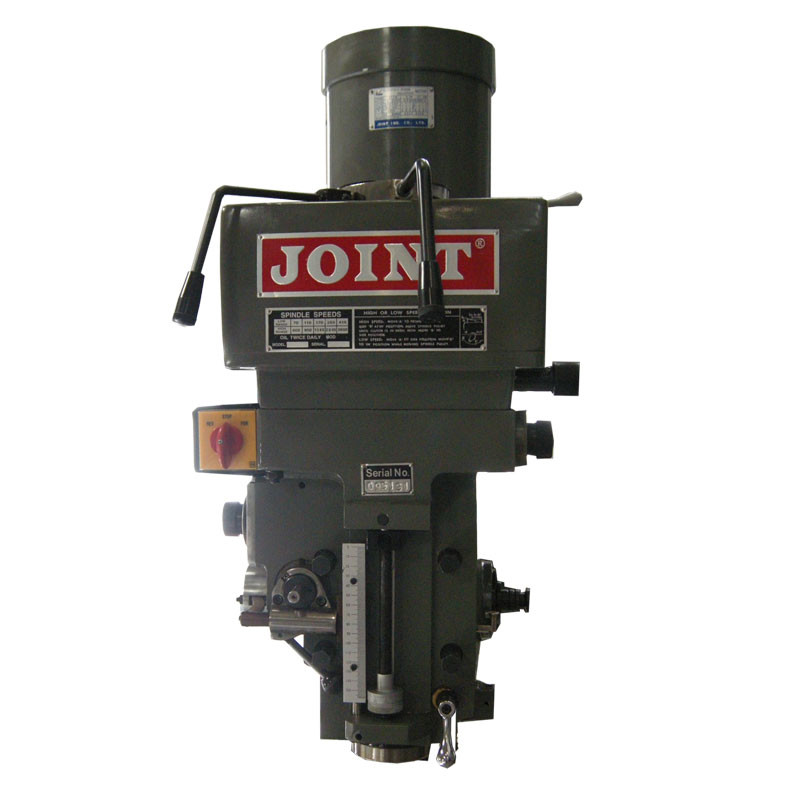

Universal milling machine Taiwan original milling head

1. Twice presion scraping can ensure accuracy quality.

2. HT-250 resin sand is used for the body casting material and other large parts, and the table is HT-300

resin sand. The surface hardness of the Joint milling machine worktable and guide surface should be increased from HRC-45 to 48 degree.

3. Machine body wall thickness (measured) 12MM.

4. Imported from Taiwan original milling head, Japan NSK brand P4 precision spindle bearings.

5. Spindle tolerance:0.002mm

60 - 3000rpm Rotation Speed Turret Milling Machine NT40 Spindle Turret Milling

Model	5VA
Table size	147030590mm
X axis travel	680mm
Y axis travel	415mm
Z axis travel	420mm
Travel of spindle quill	150mm
Max distance from the spindle nose to table	620mm
Spindle rotation speed	60-3000/(10Grades)/50HZ 70-3600/(10Grades)/60HZ
Spindle Taper	NT40
Spindle Rated power	5HP
Tilt angle Forward and backward	±45°
Tilt angel left and right	±90°
Dimension	150017002450mm
Net weight	2000kgs
