1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

SHENZHEN JOINT TECHNOLOGY CO.,LTD

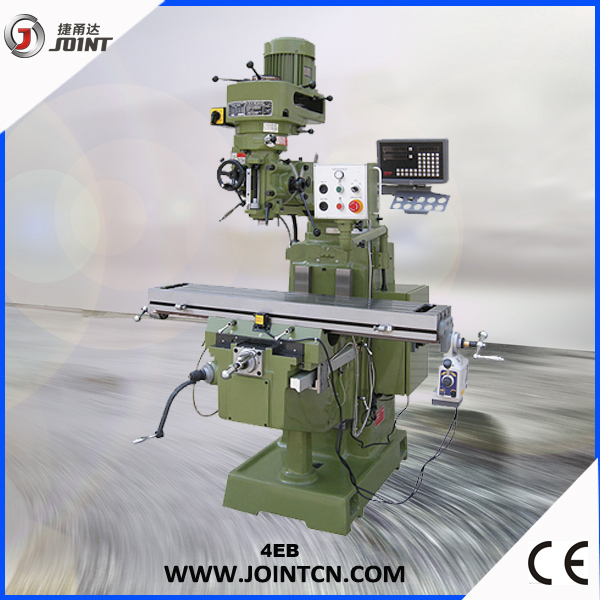

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

Brand Name : JOINT

Model Number : 4EB

Certification : ISO 9001:2015

Place of Origin : CHINA

MOQ : 1 SET

Price : NEGOTIATION

Payment Terms : TT/LC/DA/DP

Supply Ability : 1000 SETS/YEAR

Delivery Time : NEGOTIATION

Packaging Details : WOODEN PALLTES / WOODEN CASE

Table size : 1270*254*90mm

X/Y/Z travel : 900/370/360mm

Max distance between spindle to table : 400mm

Travel of spindle quill : 127mm

Spindle rotation speed : 80-5440rpm (16 degree)/60HZ

Spindle taper : R8 (NT30)

Spindle motor : 3HP

Forward and Backward tilt angle : ±45°

Left and right tilt angle : ±90°

Dimension : 1500*1700*2150mm

Net weight : 1500kgs

Contact Now

X axis deovetail way Y/Z axis square way 1270*254mm table Taiwan parts step speed economiclal milling machine 4EB

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1. Low price with good quality

2. Taiwan parts assembled in China

3. Spindle tolerance:0.005mm

4. Twice precision scraping can ensure processing quality

5. Suitable for household appliances, daily necessities mold processing

6. X axis deovetail way , Y/Z axis square way.1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

Model 4E
Table size 1270*254*90mm
X axis travel 900mm
Y axis travel 370mm
Z axis travel 360mm
Travel of spindle quill 127mm
Max distance from the spindle nose to table 400mm
Spindle rotation speed 80-5440/(16 grades)/50HZ
Spindle Taper R8(NT30)
Spindle Rated power 3HP
Tilt Angel Forward and backward ±45°
Tilt angel left and right ±90°
Dimension 1500*1700*2150mm
Net weight 1500kgs

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

Precision machinery manufacturer since 1995.

Your reliant expert on moulding and machining equipemnt!

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

1270 * 254mm Benchtop Mill Drill Machine R8 Spindle Taper For Household Appliances

Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply you ASAP. And you may contact us directly by Trade Manager or Telephone.

Q2. Can you provide customized machine or SPM (Special purpose machine)?

A. Yes, we provide smart solutions for our customer, in order to increase efficiency.

Q3. Can you provide training for operation CNC machines?

A. Yes, free training in our factory is available.

Q4. How about your price?

A. Send me details about what you need, you will get the best price in China. The price is competitive over the world.

Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of 12 months, starting on the machine’s bill of lading date. Extended warranty is available at the time of purchase. Please contact your Joint sales representative for details.

Q6. What’s the delivery time, and what’s the package?

A. Normally the delivery time is about 15 days if the goods are in stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
