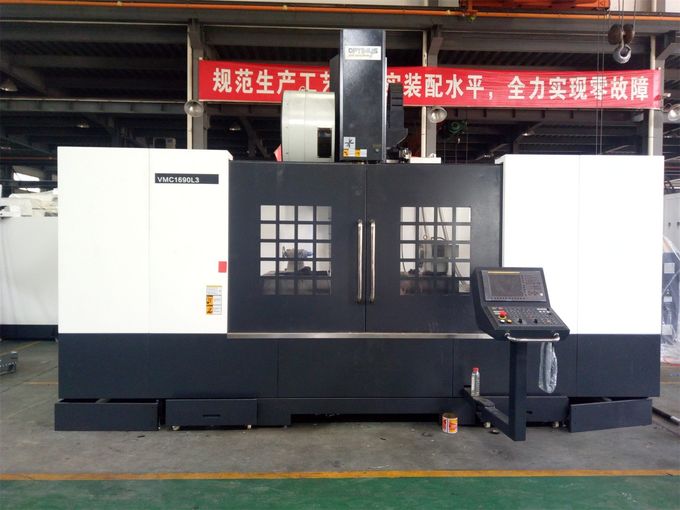

Three axis ball linear way high efficiency high rigidity parts
processing cncn manchine center VMC-1690L3
1. X/Y/Z axes are ball linear slideway
2. High-rigidity machine body to ensure the strong cutting
requirements fulfilled under fast operation.
3. Coupling,spindle bearing,spindle,ball screw,linear slideway,tool
magazine,unclamping cylinder and other key parts are imported from
top-level brands in Germany,Japan and Taiwan to ensure high quality
and high precision of the products.
4. Suitable for small to medium metal parts processing.
5. Modular configuration,can provide customized options to meet
different processing needs: with spindle water coolant,Ring spray
type spindle,10000-15000 rpm/min direction connection spindle etc.
6. This machine center serie specializes in processing metal
parts,with faster feed speed, and high rigidity cutting
|Distance between spindle and table||180-980mm|
|Distance between spindle and column||960mm|
|Spindle rotation speed||8000 rpm|
|X axis Rapid feed||24 m/min|
|Y axis Rapid feed||24 m/min|
|Z axis Rapid feed||18 m/min|
|Cutting feed||10 m/min|
|Max load of table||1600kg|
1.Fance / Mitsubishi controller system
2. Full enclosed cover
3.Spindle encoder position system
4.Three inner encoder feedback system
5.Auto lubrication system
11.Tool and tool box
1.Siemen system controller or other controller
2.Spindle oil coolant
3.Umbrella type tool magazine
4.Arm type tool magazine
5.Screw type auto conveyor
6.Chain type auto conveyor
7.4 axis rotary
8.Through spindle water coolant
9.Ring spray spindle
For more details, welcome to contact with us by clicking here.
Precision machinery manufacturer since 1995.
Your reliant expert on moulding and machining equipemnt!
Q1. How can I get a quotation?
A. Leave us massage with your purchase requements and we will reply
you ASAP. And you may contact us directly by Trade Manager or
Q2. Can you provide customized machine or SPM (Special purpose
A. Yes, we provide smart solutions for our customer, in order to
Q3. Can you provide training for operation CNC machines?
A. Yes, free training in our factory is available.
Q4. How about your price?
A. Send me details about what you need, you will get the best price in
China. The price is competitive over the world.
Q5. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective
for a period of 12 months, starting on the machine’s bill of lading
date. Extended warranty is available at the time of purchase.
Please contact your Joint sales representative for details.
Q6. What’s the delivery time, and what’s the package?
A. Normally the delivery time is about 15 days if the goods are in
stock, 35 days if the goods are not in stock. All our machinery are packed with sea worthy package.
